Sheet Metal Analysis
Evaluating Forming Limit Curve with 3D DIC
Sheet metal is widely used across various industries, making it crucial to understand its forming behavior and mechanical properties. The Forming Limit Curve (FLC) is a critical criterion used in sheet metal forming to predict the material’s behavior under different strain conditions. It provides a failure threshold by mapping major and minor strain values, helping manufacturers optimize forming processes and prevent defects. The Forming Limit Diagram (FLD) represents the maximum formability of a material and is typically determined using the Nakajima test, a standardized test method for evaluating forming limits.
Objective
This case study aims to determine the Forming Limit Curve (FLC) and Forming Limit Diagram (FLD) for three sheet metal specimens using a Nakajima test and 3D Digital Image Correlation (DIC).
Description of the Case Study
The experiment analyzed three steel sheet metal specimens with different geometries (30 mm, 60 mm, and 120 mm) using a 3D DIC setup. The testing setup included:
❖ Cameras: Two synchronized Basler 2.3 MP cameras
❖ Frame Rate: 50 fps
❖ Camera Position: Angled at approximately 15° for capturing out-of-plane motion
❖ Measurement Process: Full-field strain and displacement tracking using stereo DIC
This setup enabled high-precision tracking of surface deformation in all three axes (x, y, z) during the Nakajima test, providing valuable insights into the material’s mechanical response.
Key Results
❖ Strain Distribution and Crack Analysis

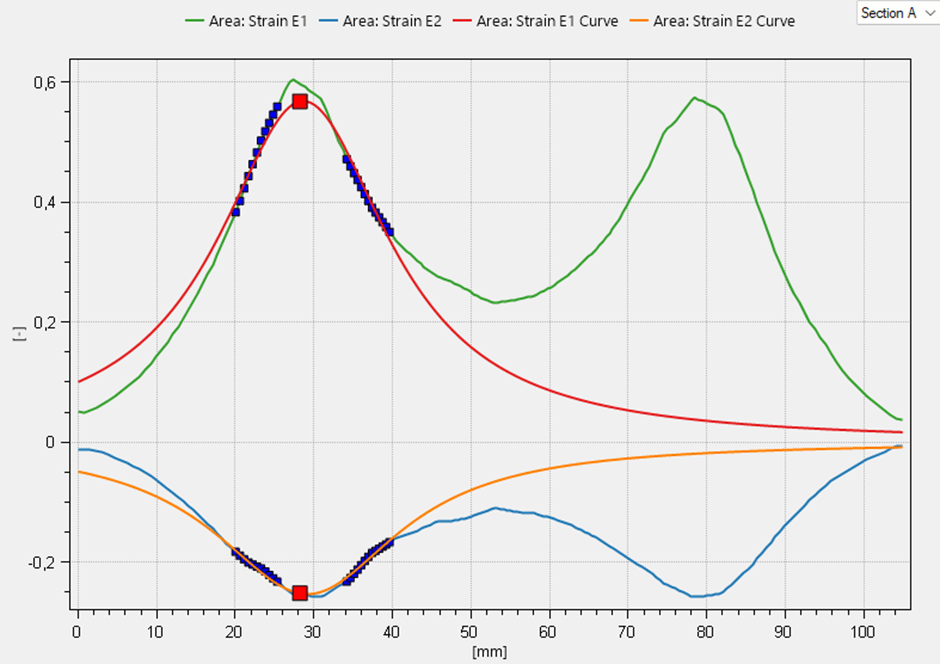

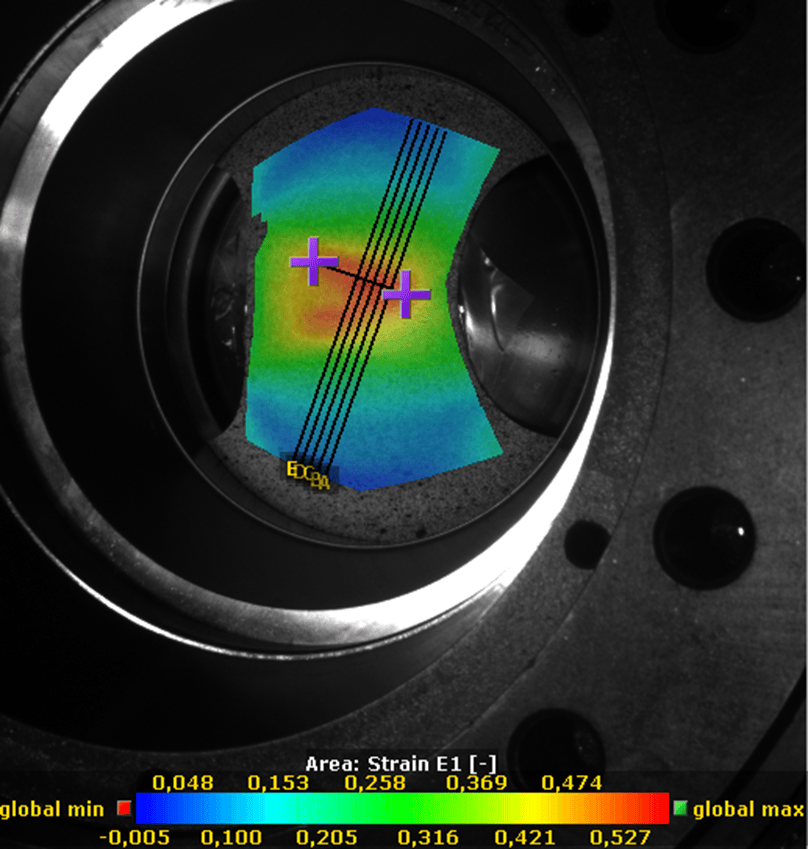

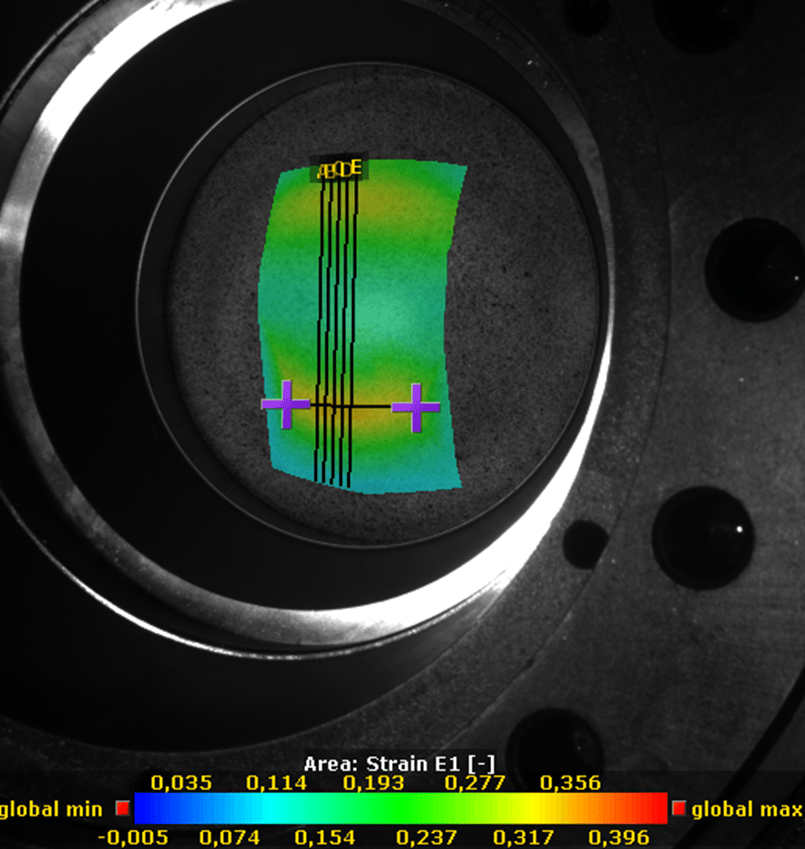

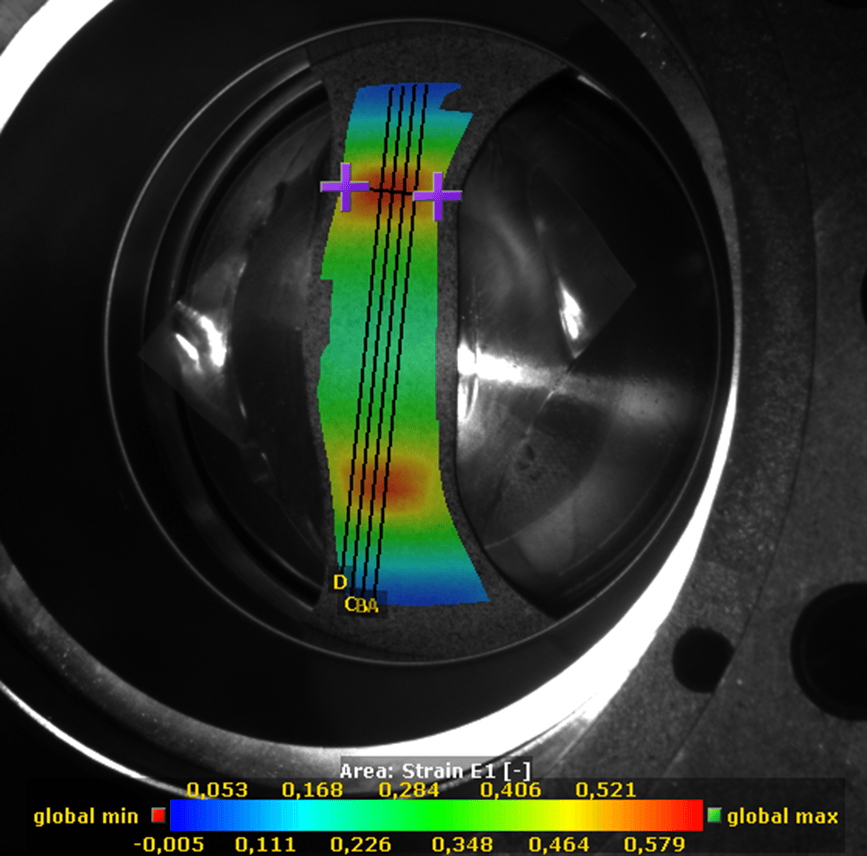

The strain distribution was measured for three specimen geometries (30 mm, 60 mm, 120 mm). The images below show the input crack line settings for different specimens, allowing for accurate evaluation of failure locations.
❖ Forming Limit Curve Evaluation

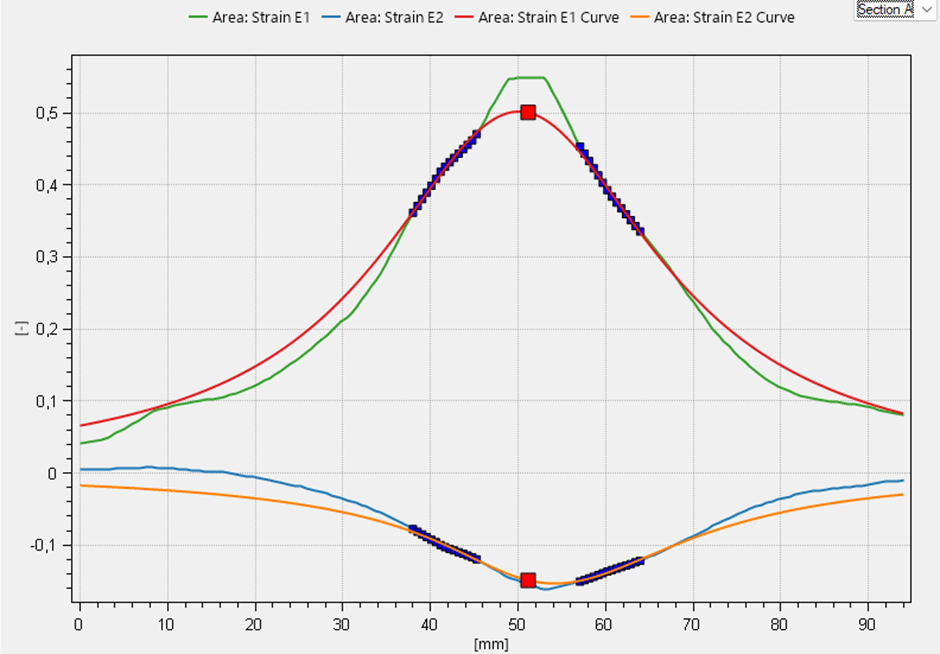

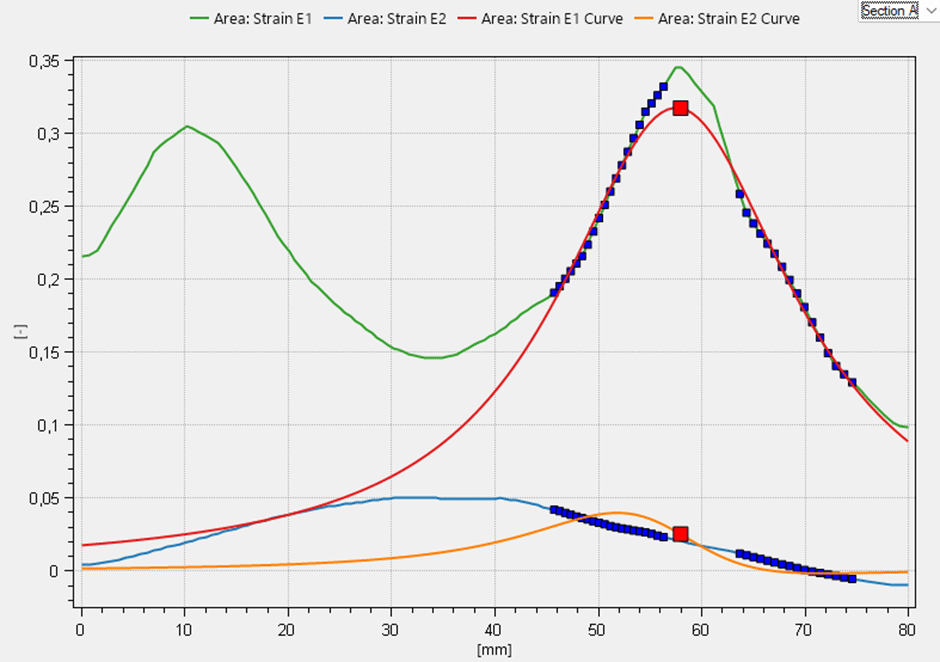

The strain distribution was measured for three specimen geometries (30 mm, 60 mm, 120 mm). The images below show the input crack line settings for different specimens, allowing for accurate evaluation of failure locations.

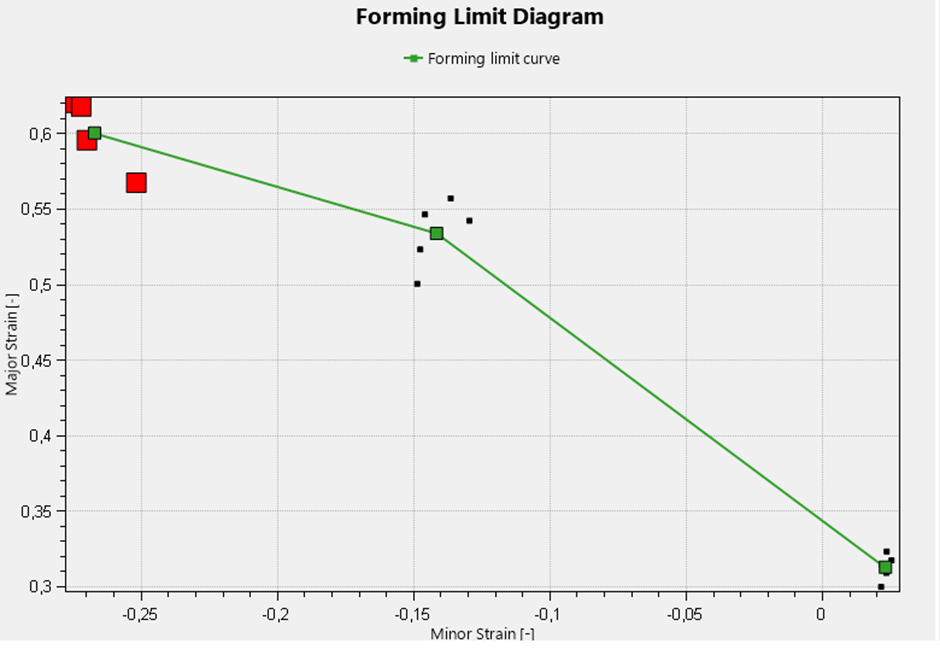

The final FLC analysis confirmed the material’s forming capabilities and provided data for optimizing manufacturing processes to reduce failure risks.
Advantages of Using 3D DIC in Forming Limit Curve Analysis
❖ Full-field strain and displacement tracking for high-precision analysis.
❖ Non-contact measurement eliminates sensor interference with specimen deformation.
❖ Real-time monitoring of strain development and crack propagation.
❖ Accurate out-of-plane motion capture, essential for forming analysis.
❖ Post-processing capabilities for detailed analysis and FEA validation.
This study demonstrates how 3D Digital Image Correlation (DIC) enhances Forming Limit Curve (FLC) evaluation in sheet metal analysis. The Nakajima test, combined with stereo DIC, provides accurate strain distribution and crack location tracking, ensuring precise formability assessment. By integrating DIC-based forming analysis, manufacturers can optimize material forming processes and enhance product reliability.
